installation
The ADDVISOR is one-of-a-kind and the only way to add a second independent sun visor to virtually any car, truck, SUV, or van. No more moving the car sun visor from front to side and back again as you turn.
Being unique is great but it also means you may not know how the new sun visor is installed and used.
These instructions and advice will help you get the most sun glare protection from The ADDVISOR and enjoy a better drive wherever the road may take you.

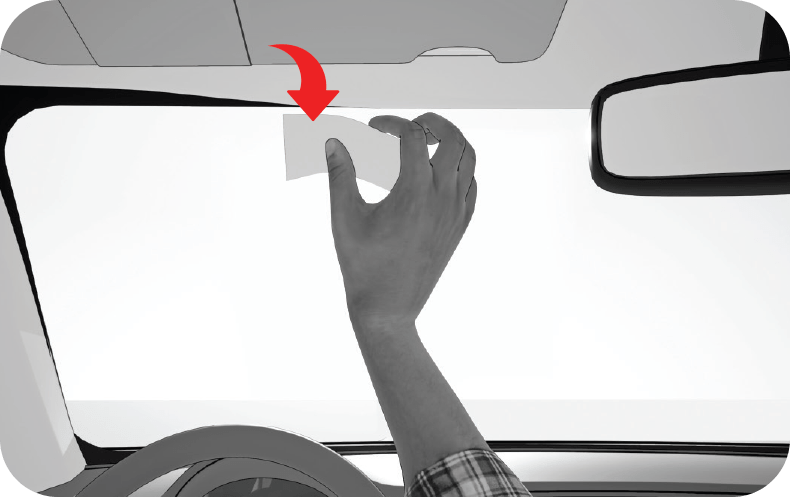

1. Clean with alcohol pad

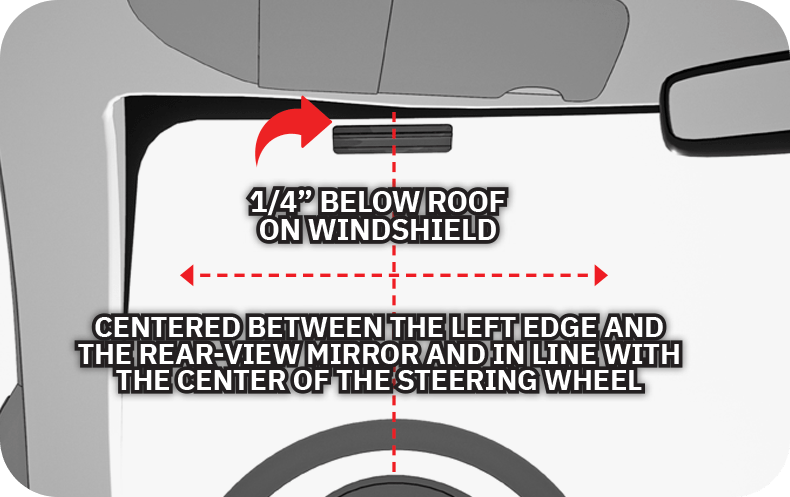

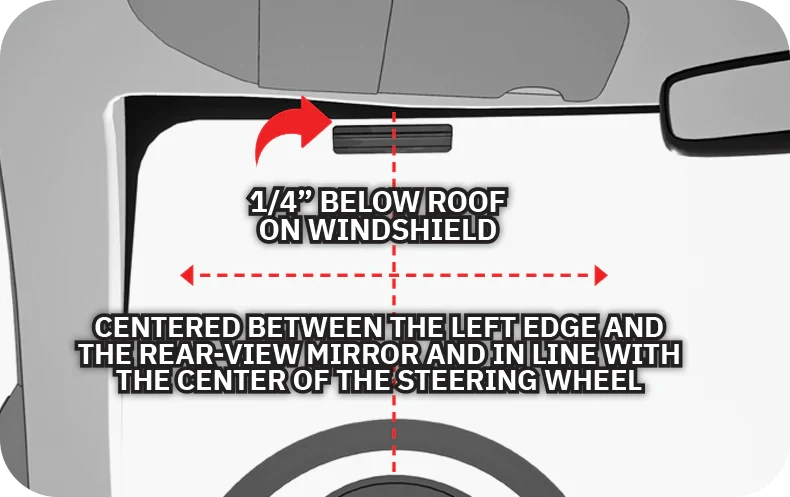

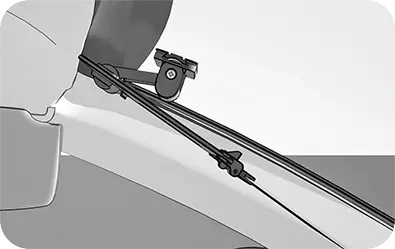

2. Mounting location on windshield

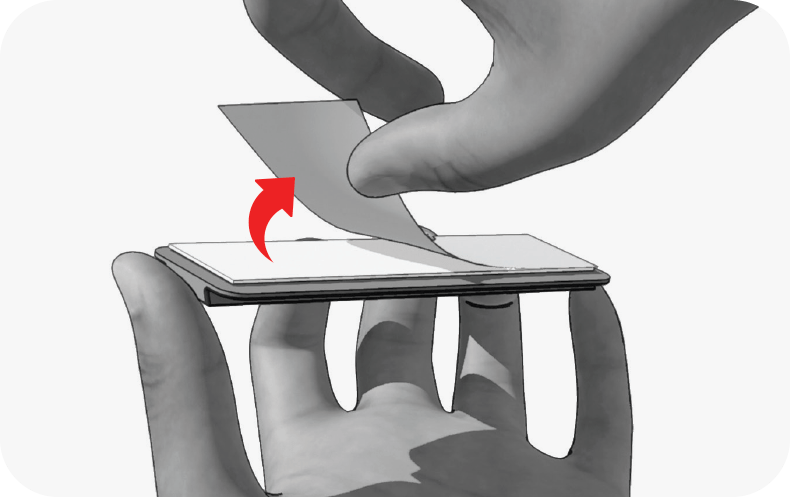

3. Peel rail backing

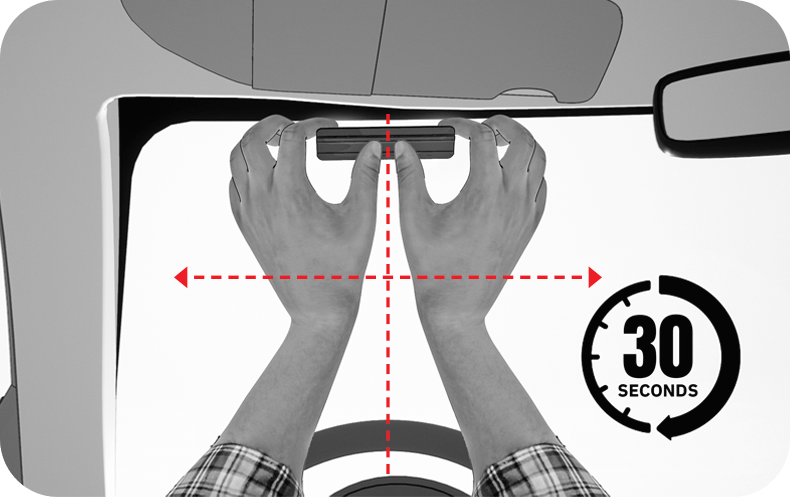

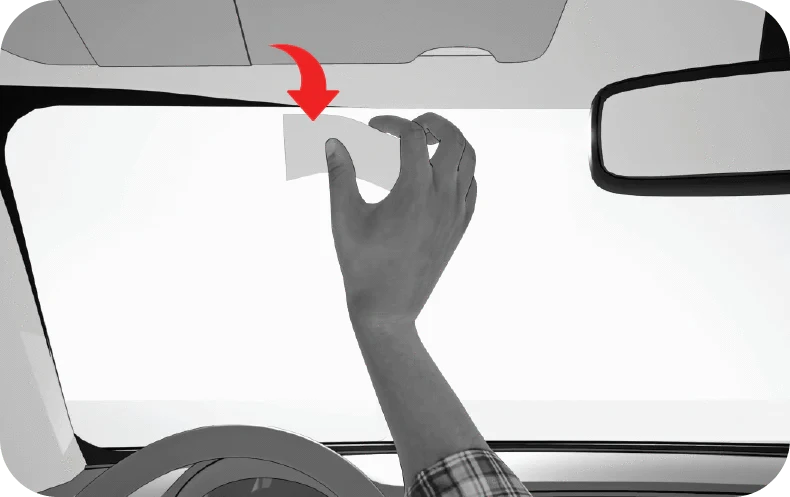

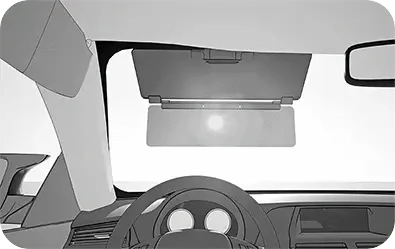

4. Position as shown in (2)

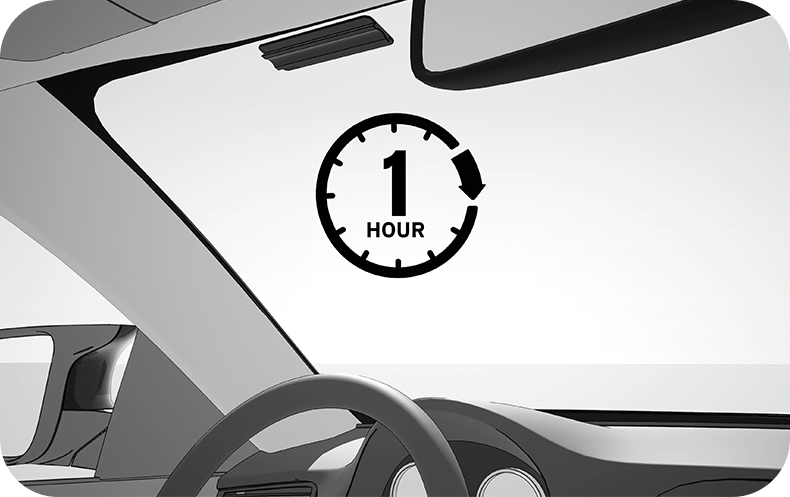

5. Let it set at LEAST 1 hour

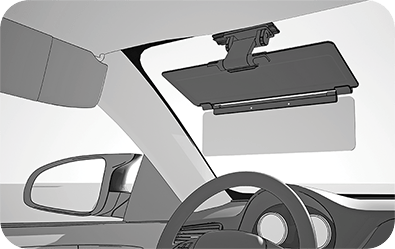

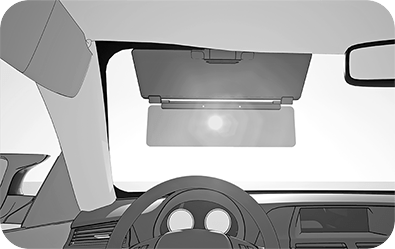

Positions most like the car visor

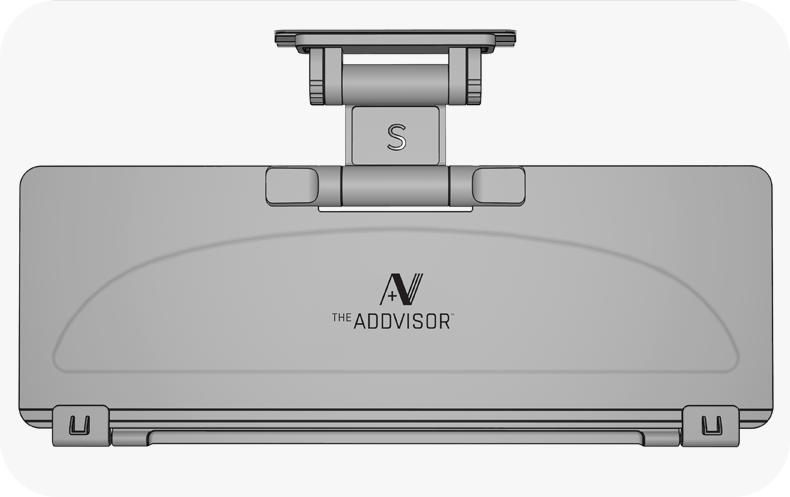

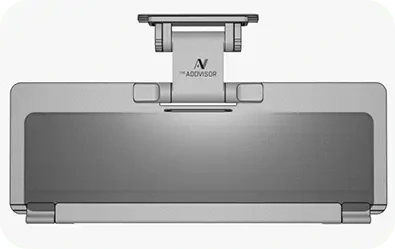

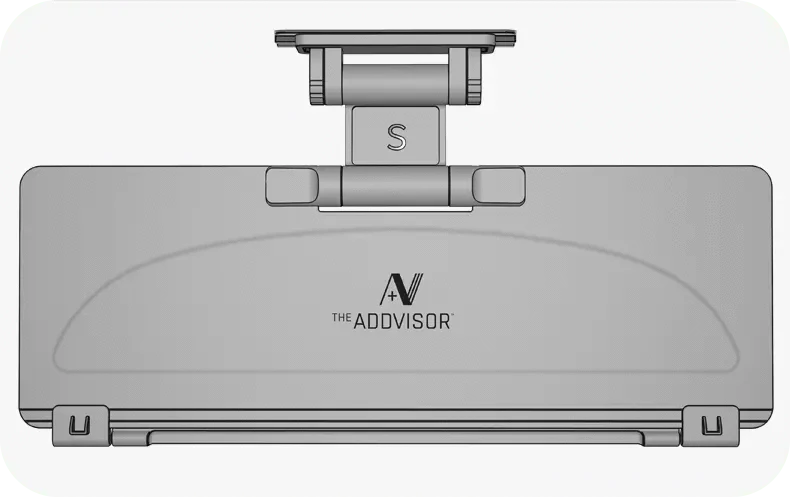

1. ADDVISOR facing this way

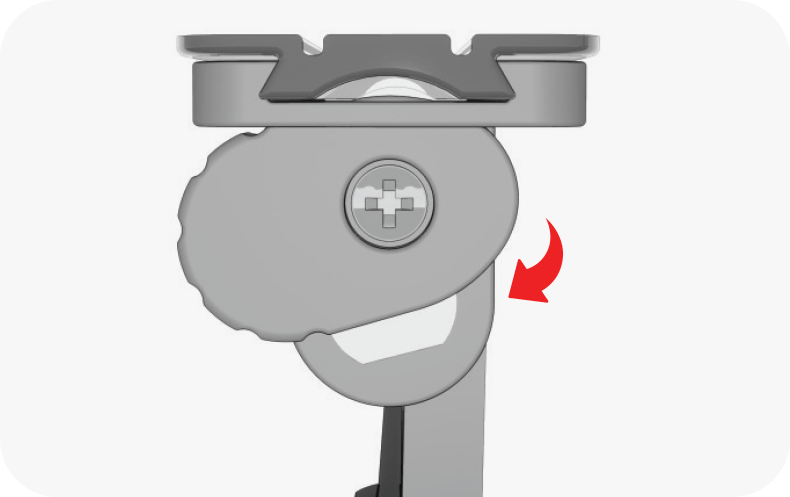

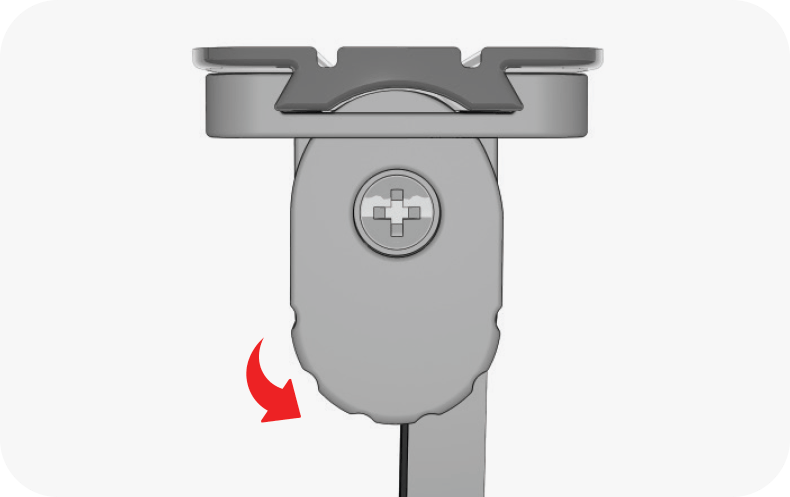

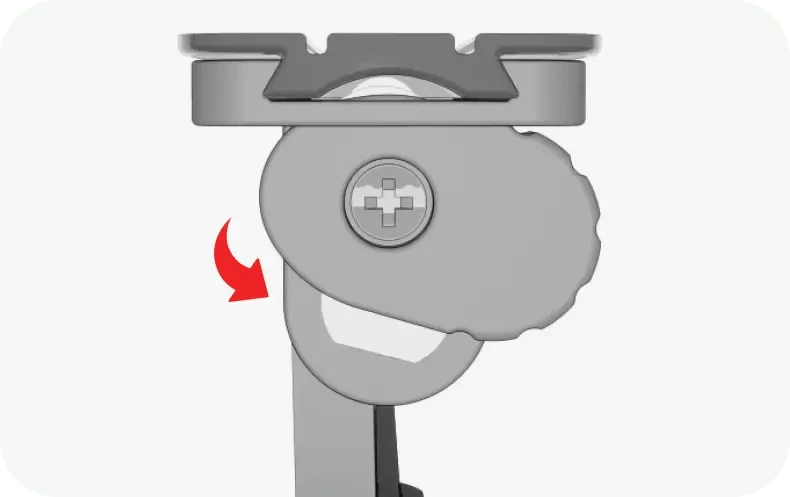

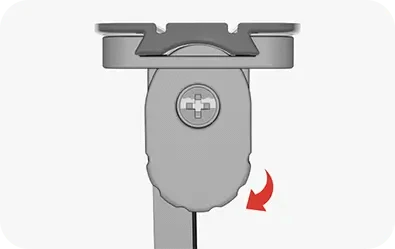

2. Twist both cam locks open

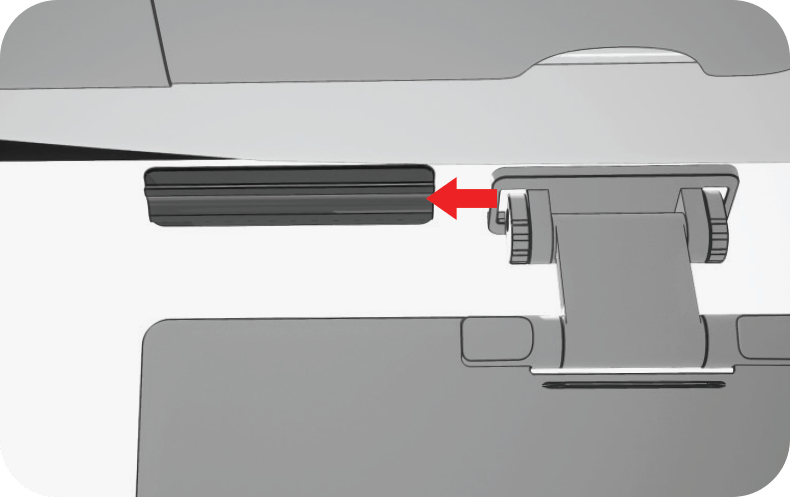

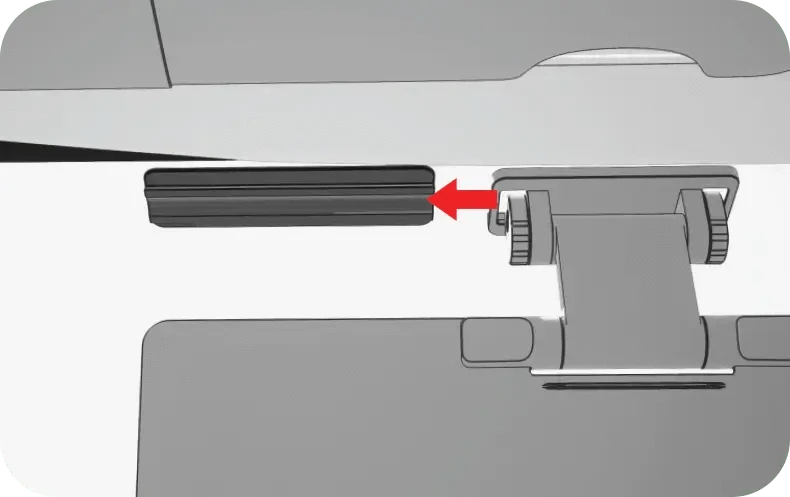

3. Slide onto rail

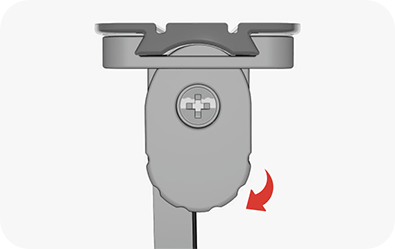

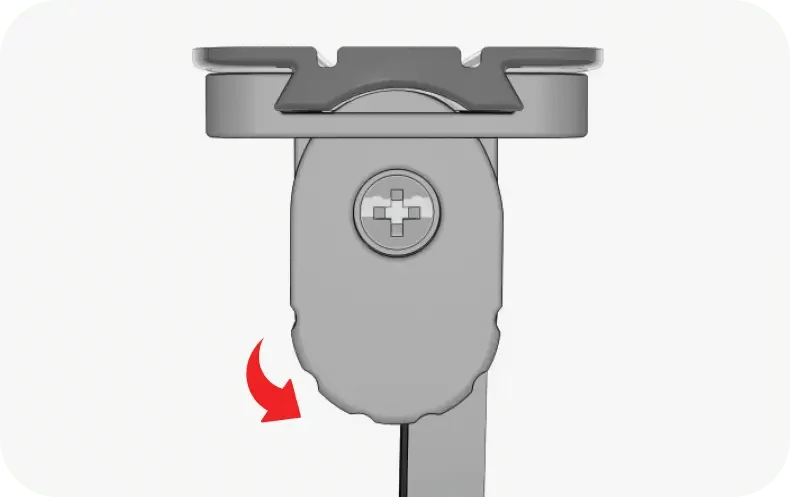

4. Twist both cam locks closed

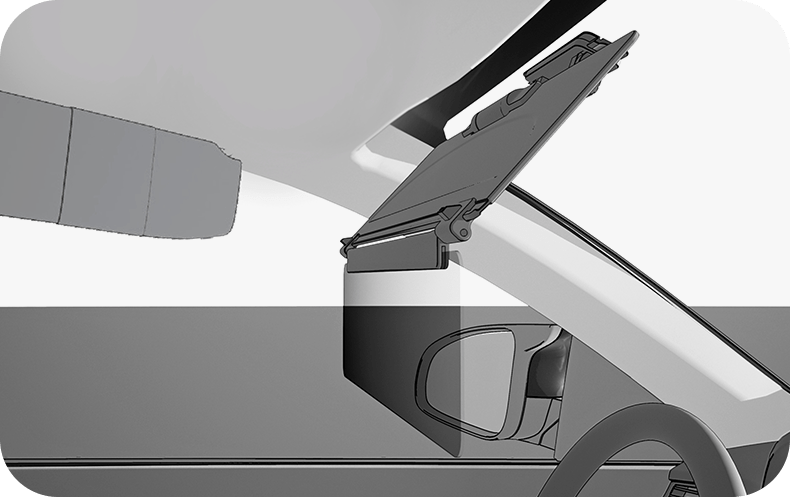

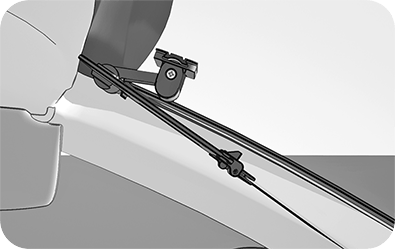

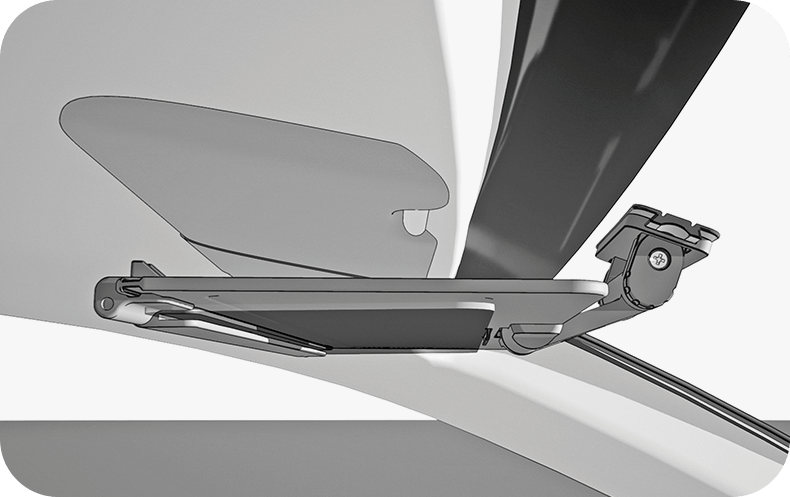

5. Stowed position
The ADDVISOR should be stowed when the vehicle is parked.

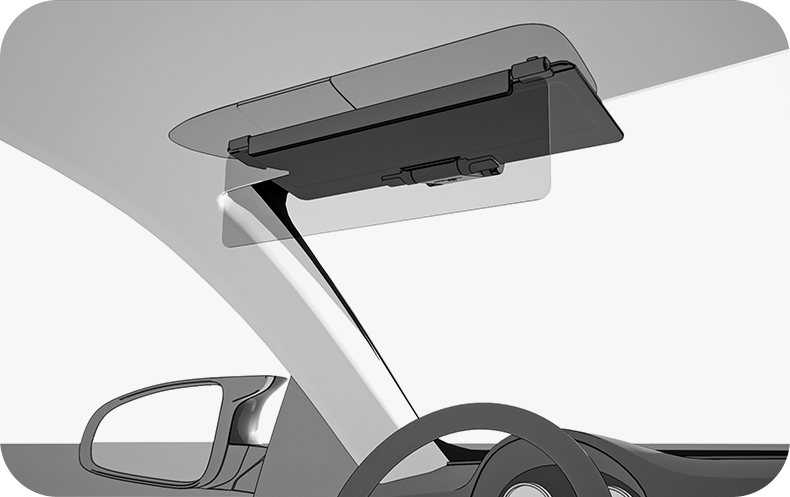

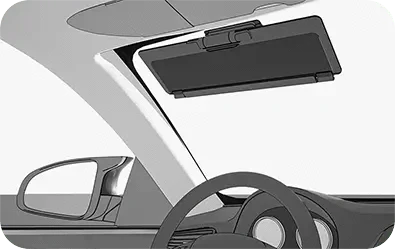

1. Fold to visor position

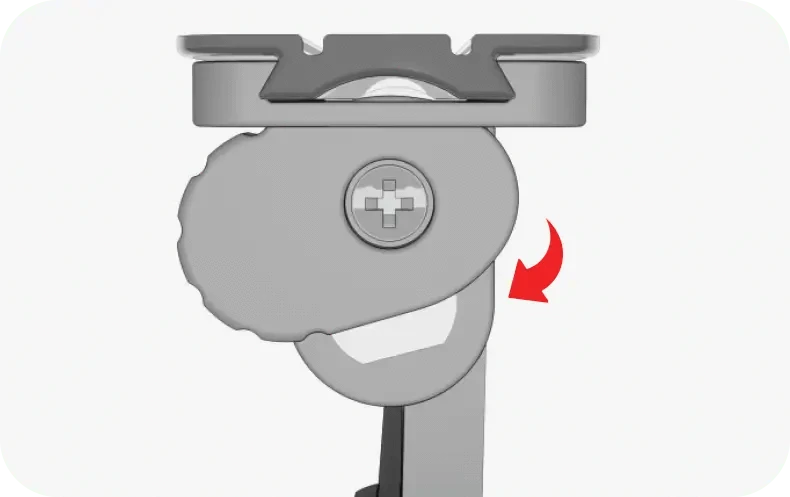

2. Hinge fold detail (see previous image)

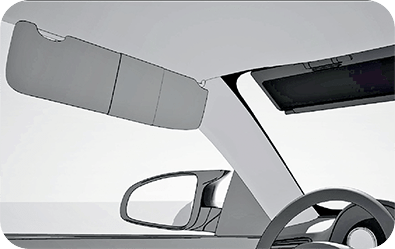

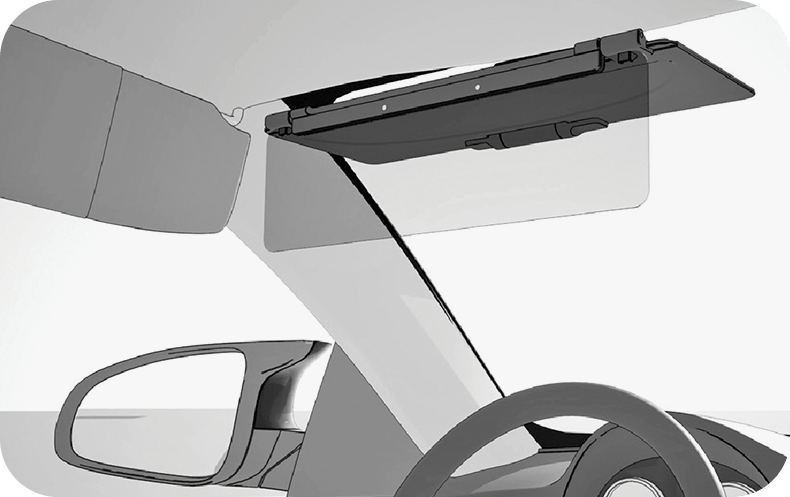

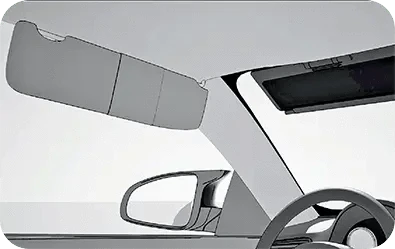

3. Move car visor to the side for 2DSP
4. Flip TintedVISOR™ down for low sun

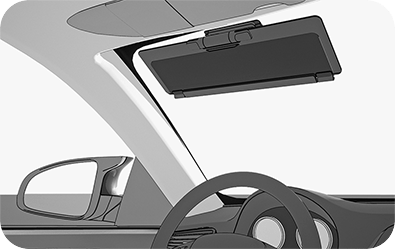

5. Move as needed to find best position
The Tinted Visor ONLY folds flat toward the rectangular indent on the Main Visor. Forcing the TintedVISOR™ to fold the wrong direction will irreparably break the hinges.
Good for people who wear prescription glasses
1. ADDVISOR facing this way
2. Twist both cam locks open
3. Slide onto rail
4. Twist both cam locks closed
5. Stowed position
The ADDVISOR should be stowed when the vehicle is parked.

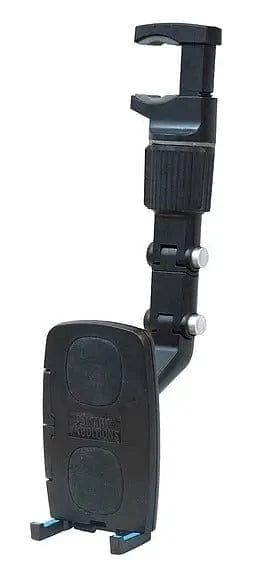

1. Choose Mount option
2. Slide Tightening Ring onto mount stem Threads facing towards the ball end
Threads facing towards the ball end
NOTE: Mirror Mount shown here, same steps for Vent Mount
3. Line up Ball end with the Socket on the Phone Cradle
4. Press firmly until Ball snaps into the Socket
5. Thread the Tightening Ring onto the Cradle Socket
For now only tighten part way to make sure it is threaded
6. Press the Clamp Jaws together on the mirror stem
Use other hand to turn the ring counter-clockwise until the clamp jaws are secure on the mirror stem
7. Make sure the Clamp Jaws hold securley on the mirror stem
TIP: It may be easier to attach the clamp from the passenger seat for a better view of the mirror stem
8. Set Phone Cradle vertically
Turn Tightening Ring to lock the cradle into the desired position
9. Set Phone Cradle horizontally
Turn Tightening Ring to lock the cradle into the desired position
